Description

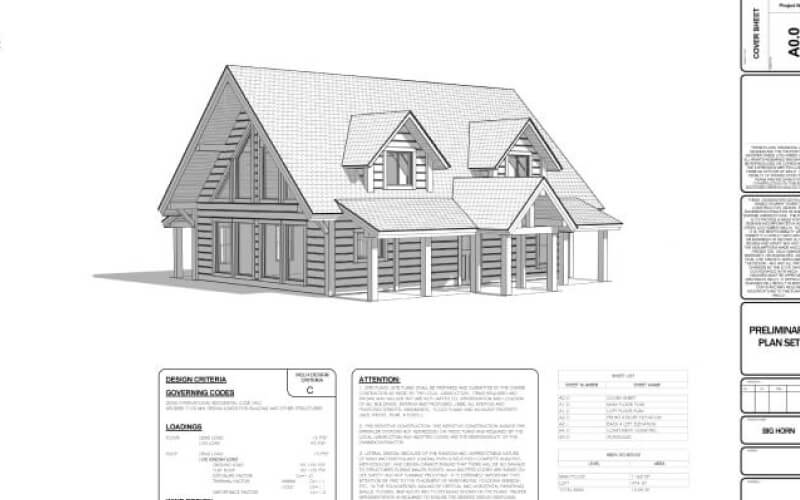

Welcome to our Big Horn Model! With nearly 1700 square feet of living space, this home is a popular choice for large families. Measuring 29 by 40 feet, this home is perfect for those who value spaciousness and comfort.
The great room of this home is truly magnificent, with its 25-foot ceilings and open loft space. You’ll love the natural charm of the log king post and hand-peeled log purlins, adding warmth and character to your living space. It is also an option to upgrade the log components to timber components if they are preferred.
Model Specification
Wall Construction
- 2x6 Stud
- 10' wall height
- Laminated LVL Headers with insulation core
- Conventional 2x6 framing practices
- Double Top Plate 7/16 OSB sheathing
- Single Bottom Plate
- House Wrap
Exterior
- Siding Installed
- Pella Window Vapor Tape Installed
- Chinking Installed
- Stained & Clear Coat Applied
- Heavy Timber Window Trim
- Lift Points For Unloading Installed
- Windows Installed
- Window Trim Caulked
- Exterior Corners Pre - Finished, shipped loose
Roof
- 12:12 Pitch Central Roof System
- Glulam Ridge Beams
- Rafters Precut & Mitered
- Connection Steel And Threaded Rods Included
- Required Rafter Blocking And Support Pieces
- Gable King Posts
- Web stiffners Installed
- Roof Sheathing Included
- 48" Gable Eve Overhang On TJI Roof Section
- 14" TJI Rafters
- Rafter Hangers Included
- 3/4" OSB Sub-Fascia, 4x8 stock shipped
- 24" Eve Overhang All Other Locations
Design Criteria
- Wind - 90 MPH
- Roof Load - 70 PSF Ground Snow Load
- Foundation - 1,500 PSF Minimum Soil Bearing Pressure, Site Class D
- Seismic - Evaluated During Engineering
Interior Timber Package
- 10" Pocketed Gable King Post, qty 2
- 10" Loft Support Beams, qty 2
- Timber Stair Railing
- 10" Minium Center Post , qty 1
- 10" Loft Purlins, qty 6
- Full Set Of Loft Newel Post And Log Railing
- Non-Structural 10" Roof Purlins, qty 2
- Timber Stair Stringers And Treads, qty 1 Set
Exterior Timber Package
N/ALoft
- 2 X Dimensional Loft Floor Framing
- 2 X Ledgers For Wall Bearing Connections
- 3/4" T&G OSB Subfloor Sheathing
