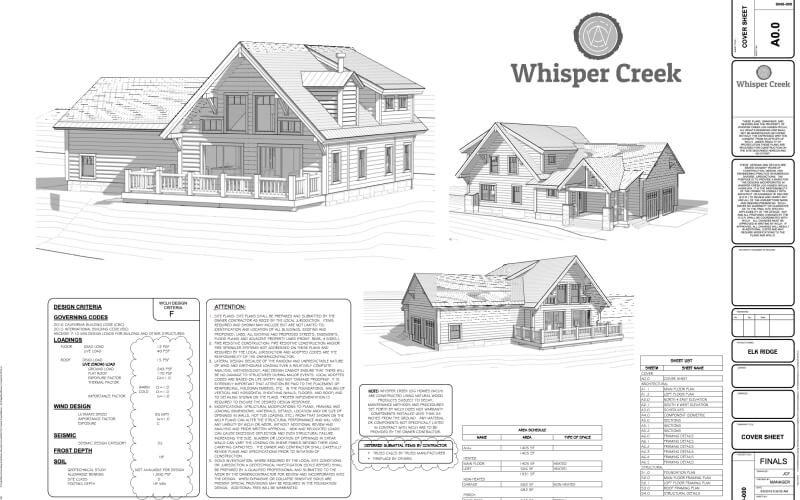

Floor Plans
These plans are shown with options or custom modifications
Description
Introducing the Elk Ridge, with 2001 sq ft on the main floor, 552 in the loft or if you want to add the expanded loft option then the loft is 1363 sq ft.
The Elk Ridge a breathtaking masterpiece that embodies the essence of mountain living while offering all the comforts and conveniences of modern design. Nestled amidst the majestic landscape, the Elk Ridge home is a sanctuary of tranquility and luxury, designed to elevate your lifestyle to new heights.
Step inside and be captivated by the grandeur of the Elk Ridge. With its spacious layout and thoughtful design, this home exudes warmth and sophistication at every turn. Imagine relaxing in the expansive great room, adorned with vaulted ceilings and bathed in natural light, while the crackling fireplace sets the perfect ambiance for cozy evenings with family and friends.
But that’s not all – the Elk Ridge offers versatility and flexibility to suit your unique needs and preferences. Need additional bedroom space? A stunning master suite? Or perhaps a home office that inspires creativity? With the Elk Ridge’s customizable floor plan and optional wing addition, the possibilities are endless. Make this home truly your own and create the retreat you’ve always dreamed of.
Model Specification
Wall Construction
- 2x6 Stud
- 9' wall height
- Laminated LVL Headers with insulation core
- Conventional 2x6 framing practices
- Double Top Plate 7/16 OSB sheathing
- 7/16 OSB sheathing
- Single Bottom Plate
- House Wrap
Exterior
- Siding Installed
- Pella Window Vapor Tape Installed
- Chinking Installed
- Stained & Clear Coat Applied
- Heavy Timber Window Trim
- Lift Points For Unloading Installed
- Windows Installed
- Window Trim Caulked
- Exterior Corners Pre - Finished, shipped loose
Roof
- 10:12 Pitch Central Roof System
- Truss Blocking
- 24" Gable Eve Overhang
- Glulam Ridge Beam
- Truss Roof system
- Truss Hangers
- 24" Eve Overhang All Other Locations
- Roof Sheathing Included
- 2X6 Sub-Fascia
Design Criteria
- Wind - 90 MPH
- Roof Load - 70 PSF Ground Snow Load
- Foundation - 1,500 PSF Minimum Soil Bearing Pressure, Site Class D
- Seismic - Evaluated During Engineering
Interior Timber Package
- 10" center post
- Timber Rafters
- Faux 4" beams
Exterior Timber Package
- 10" Timber Porch posts
- Roof purlins
- 10" Timber porch Beams
Loft
- 2X loft floor framing
- Loft Support beam
- 2 X Ledgers For Wall Bearing Connections
- Floor Sheathing
Modified Floor Plans
- N/A
